Cad/Eagle  ~  HOT AIR Vinyl WELDER  120v

For Welding Soft Thermoplastics
Runs on Standard Household 120vac current.
The Unit Weighs only 3 pounds with the power cord.

 TOOLS  >  [ Hot Knife & Blade
 Cad-EAGLE ~ HOT AIR Tarp/Thermoplastic WELDER  120v   EAGLE Hot Air Vinyl Welder 120vac
EAGLE HOT AIR WELDER ~ CSC (610) 767-7555
Used to simplify seam bonding in corners, around equipment protrusions, and in other tight, hard-to-weld areas.  Handheld hot air welder unit. This unit will lap weld soft thermoplastics without any additional materials other than the use of a silicone roller to provide the necessary pressure to weld. Particularly suited to welding of tarpaulins and single ply roofing material.

The air temperature out of this unit infinitely adjustable from the ambient up to 625 degrees Celsius. The element is a quick change type with no tools required. Compact, light-weight unit fits comfortably in your hand and is available with a variety of nozzle tips to weld virtually any type of material. Double-insulated and ISO color coded for added electrical safety. The element is a quick change type, with no tools required.

 Runs on standard 120vac house current.  Includes 6 mo Mfr warranty.
The unit weighs only 3 pounds, including the power cord. An extremely powerful tool. The Cad-Eagle heating element will fit as a direct replacement for the Leister brand, and is a simple pull out, plug in operation. Features include a recessed temperature control knob, a booted power switch and screened air inlet to protect the Cad-Eagle against damage. Air flow is adjustable up to 15 CFM. Built in over temperature protection, protects the heating elements and electronics from thermal damage.

DIMENSIONS:  12.6" x 3.7" Made In USA

CARE:  Cleaning the debris that accumulates on the inlet screen can be done only when the heat gun has cooled off and the tool is turned off.

  #2840j - Cad/Eagle  - Hot Air Welder  -  120vac

 SPECIAL  $849.  Vinyl Welder

- Eagle HOT AIR Tarp WELDER   120v

IINSTRUCTIONS For Eagle (above):  Make sure the voltage is the same as shown on the name plate. Turn the unit on using the rotary switch, set the unit to the desired heat output. It takes approximately 4 minutes for the tool to attain its full operating temperature. When Finished, cool the heating element down by turning the rotary switch to position 1. This action will extend the life of the heating element. After the unit has cooled down, turn the tool off.  Ambient - 1200 degrees F (Ambient - 650 degrees C)

 CAUTIONS:  Incorrect tool use can cause a fire. Be sure to lay the tool on a fireproof surface when not in use. To avoid burns do not touch the heating element holder or nozzle while the tool is in use. The tool should be protected from damp or wet conditions. To ensure tool safety the carbon brushes should be checked and/or replaced after about 1600 hours of use .

Select  "ADD To CART"...   Type QUANTITY & Update
 Replacement Parts ~ ELEMENT for Eagle Welder    For Above Unit
Replacement heating element for Cad/Eagle (use with part # 2840 above).
Replacement Element For Eagle Gun 6mo Mfr warranty.

 #2841 - Replacement Heat-ELEMENT for Cad/Eagle 2k

$199.95 Each
- Replacement ELEMENT only
Replacement ELEMENT For EAGLE Welder
Replacement ELEMENT

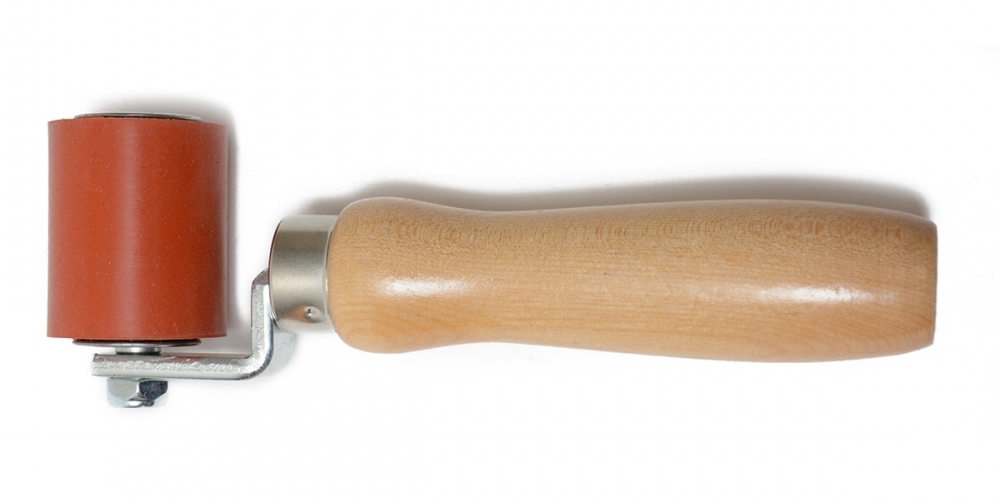

 Tool ~    Silicone ROLLER For Use with Welder
Silicone Roller. Tough silicone roller mounted on a sturdy handle for pressure rolling tarps while being heat welded.

USES:  Flattening out any surface being glued or fit to complex shapes, such as carpeting to automotive floors or vinyl onto complex shapes and when working with heat such as hot air guns or lamps to soften the vinyl. For edging tape and PVS. Also very useful for flattening out any surface being glued or fit to complex shapes, such as carpeting to automotive floors or vinyl onto complex shapes. It is also used for working with heat such as hot air guns or lamps to soften the vinyl. Recommended for use with the Part# 2840.

Part # 2845
Silicone Roller
$49.95 Each
#2845 - Silicone ROLLER
ROLLER TOOL
Silicone ROLLER
