Aluminum   3/8" HEAD ROD CLAMP  For 3/8"Diameter Rods (OD)
Used to attach the head rod of awnings to various building surfaces
with stainless steel fasteners.
#2368
for 3/8" rod
SIX Piece Pack:
 6pcs

$39.95 for 6pc/pk

EIGHTEEN Piece Pack:

 18-Pc-Pk

$115.  18-Pc-Pk

HEAD ROD CLAMPS Are Sized On "Actual" ROD Outside-Diameter

Aluminum  1/2" HEAD ROD CLAMP   For 1/2"Diameter Rods (OD)
Used to attach the head rod of awnings to various building surfaces
with stainless steel fasteners.
#2370
for 1/2" rod
SIX Piece Pack:
 6pc/pk

$39.99 for 6pc/Pk

Eighteen Piece Pack:
 18-pc/pk

$116. for 18-Pc-Pk

Select   "ADD To CART"...   Then Adjust QUANTITY                     > Scroll Down, more below > >

Alum 1/2" HOOKLESS HEAD ROD CLAMP For 1/2"Dia. Rods (OD)
for 1/2" Head Rod Clamp without the hooks.
#2372
for 1/2" rod
SIX Piece Pack:
 6-Piece-PACK

$39.98 Six-Piece-PK

Eighteen Piece Pack:
 18-Pc-Pk

$115. for 18-Pc-Pk

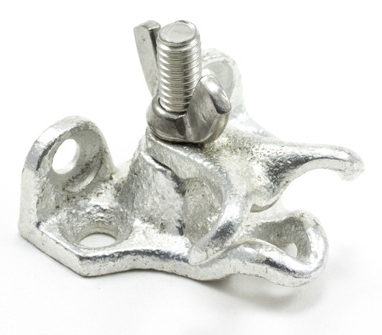

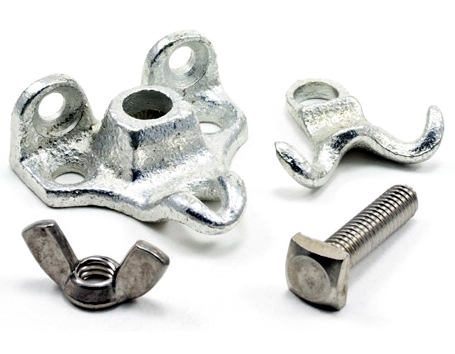

Awning - HEAD ROD CLAMP - Roller Curtain Type (Below)

  CSC (610) 767-7555CSC (610) 767-7555Fasten To Wall Or Ceiling; Zinc Die-Cast

 HRC/RCT:   2-pc/Pack
$24.99 - PER 2pc/pack (Per Two-pcs)
AWNING PARTS Below Are Sized for Schedule-40 Piping (As explained below)
Aluminum   TIE DOWN CLAMP   for 1.315"OD Tubing
Clamp to tie down pipe to 5/8"od-rods. (and for 1"ID Schedule-40)
For Piping 1.315" OD (over 1-1/4"OD )  #TC-78 (2432)
 2-pc/Pack
$32.95 - 2pc/pack
for 5/8" rod plus
1.315"OD/Tubing
Slip-Fit   ELBOWS 00006541.jpg

 Sized for
Schedule-40-Pipe
READ Below

Aluminum.   SLIPFIT ELBOW
 90 degree SLIPFIT elbow with stainless steel
securing screws.  Gusseted for extra strength.
For Piping 1.050" OD (over 1"OD )
#Elb-5SL AL (3/4"-ID-Sched40)  (USA Only)
 SF ELBOW
$34.95 for 2pcs
Aluminum.  SLIPFIT ELBOW
 90 degree SLIPFIT elbow with stainless steel
securing screws.  Gusseted for extra strength.
For Piping 1.315" OD (over 1-1/4"OD )
 #Elb-6SL AL (1"-ID-Sched40)  (USA Only)
 SF ELBOW
$34.99 for 2pcs
Aluminum.   SLIPFIT ELBOW
 90 degree SLIPFIT elbow with stainless steel
securing screws.  Gusseted for extra strength.
For Piping 0.840" OD (over 3/4"OD )
 #Elb-4SL/AL-2427  (1/2"-ID-Sched40)
 SF ELBOW
$29.95 for 2pcs
 [ Prev< Awning  FITTINGS  >  [ Next ]
IMPORTANT:  AWNING FITTINGS Are Sized Based On Awning-Pipe's INSIDE-DIAMETER
(Not The Outside-Diameter)...  See The Noted ID And OD figures provided for each fitting,
And Compare To The ACTUAL MEASUREMENTS On The Pipe Which You Are Using...
If not sure, using the actual OD Pipe measure compared to the OD figure above, may be wiser.


  [ STAINLESS TUBING<  TUBING >  [ ALUMINUM TUBING~ RAIL & Welt > [ TRACK And WELT ]

 IMPORTANT:  READ Before Ordering
The measurements for these fittings are based on the pipe sizes of Schedule 40 Pipe,
which is measured by the inside diameter of the pipe, not the outside as with marine fittings.
SIZING INFO ~ Awning Fittings Are Sized based On the Pipe's INSIDE DIAMETER...   Be Sure To CHECK Both The Inside and Outside Measurements Noted...FOR EXAMPLE:
1/4"ID Schedule 40 pipe has an outside diameter of 0.540 (OD) inches (over 1/2"OD )
1/2"ID Schedule 40 pipe has an outside diameter of 0.840 (OD) inches (over 3/4"OD )
3/4"ID Schedule 40 pipe has an outside diameter of 1.05 (OD) inches (over 1"OD )
1"ID Schedule 40 pipe has an outside diameter of 1.315 (OD) inches (over 1-1/4"OD )
 OD = Outside Pipe Diameter;  ID = Inside Pipe Diameter

  [ A *MINIMUM  $29 Order in Product Required + S/H costs, On ALL Fittings ordered. ]

*Note:  Select Carefully, since All Sales Are Final...
 [ CAPS Eye End ] [ CAPS Thread Eye ] [ Bar Clamps [ Head Rod Clamps ] [ Tie-Down Clamps
[ SlipFit Elbows  [ Camel Back HINGES ] [ Post Sockets ] [ Awning RAIL and WELT ] [ Cleats ]

The aluminum hardware is cast alloys that are best suited to each applications.
All parts have a smooth surface with a bright finish.
Set screws, hinge screws, bolts and nuts are of stainless steel unless otherwise indicated.
Many of the parts appear similar to their counterparts in the boat top trade, they tend to be
larger castings and in many cases are not as well finished as the equivalent boat parts.

 OD = Outside Pipe Diameter;  ID = Inside Pipe Diameter

~  Awning Fittings Only  ~
Sizing NOTE:  If You Are Using Other Types of Piping, use that Tubing's Outside-Diameter (OD),
and Compare to the Awning-Fitting's OD Info above, that it would accommodate...
