HOT AIR Vinyl WELDER 120v
For Welding Soft
Runs on Standard Household
The Unit Weighs only 3 pounds with the power cord.
> [ Hot Knife & Blade ]
~ HOT AIR Tarp/Thermoplastic WELDER 120v EAGLE Hot Air Vinyl Welder 120vac
Used to simplify seam bonding in
corners, around equipment protrusions, and in other tight,
hard-to-weld areas. Handheld hot air welder unit. This
unit will lap weld soft thermoplastics without any additional
materials other than the use of a silicone roller to provide the
necessary pressure to weld. Particularly suited to welding of
tarpaulins and single ply roofing material.
The air temperature out
of this unit infinitely adjustable from the ambient up to 625
degrees Celsius. The element is a quick change type with no tools
required. Compact, light-weight unit fits comfortably in your hand
and is available with a variety of nozzle tips to weld virtually any
type of material. Double-insulated and ISO color coded for added
electrical safety. The element is a quick change type, with no tools
Runs on standard 120vac house current. Includes 6 mo Mfr warranty.
The unit weighs only 3
pounds, including the power cord. An extremely powerful tool. The
Cad-Eagle heating element will fit as a direct replacement for the
Leister brand, and is a simple pull out, plug in operation. Features
include a recessed temperature control knob, a booted power switch
and screened air inlet to protect the Cad-Eagle against damage. Air flow
is adjustable up to 15 CFM. Built in over temperature protection,
protects the heating elements and electronics from thermal damage.
x 3.7" Made In USA
the debris that accumulates on the inlet screen can be done only
when the heat gun has cooled off and the tool is turned off.
#2840j - Cad/Eagle - Hot Air Welder
IINSTRUCTIONS For Eagle
(above): Make sure the voltage is the same as shown on the
name plate. Turn the unit on using the rotary switch, set the unit
to the desired heat output. It takes approximately 4 minutes for the
tool to attain its full operating temperature. When Finished, cool
the heating element down by turning the rotary switch to position 1.
This action will extend the life of the heating element. After the
unit has cooled down, turn the tool off. Ambient - 1200
degrees F (Ambient - 650 degrees C)
CAUTIONS: Incorrect tool use can cause a
fire. Be sure to lay the tool on a fireproof surface when not in
use. To avoid burns do not touch the heating element holder or
nozzle while the tool is in use. The tool should be protected from
damp or wet conditions. To ensure tool safety the carbon brushes
should be checked and/or replaced after about 1600 hours of use .
"ADD To CART"... Type
QUANTITY & Update
~ ELEMENT for Eagle Welder
For Above Unit
Replacement heating element for
Cad/Eagle (use with part # 2840 above).
Replacement Element For Eagle Gun 6mo Mfr warranty.
#2841 - Replacement Heat-ELEMENT for Cad/Eagle 2k
| Tool ~

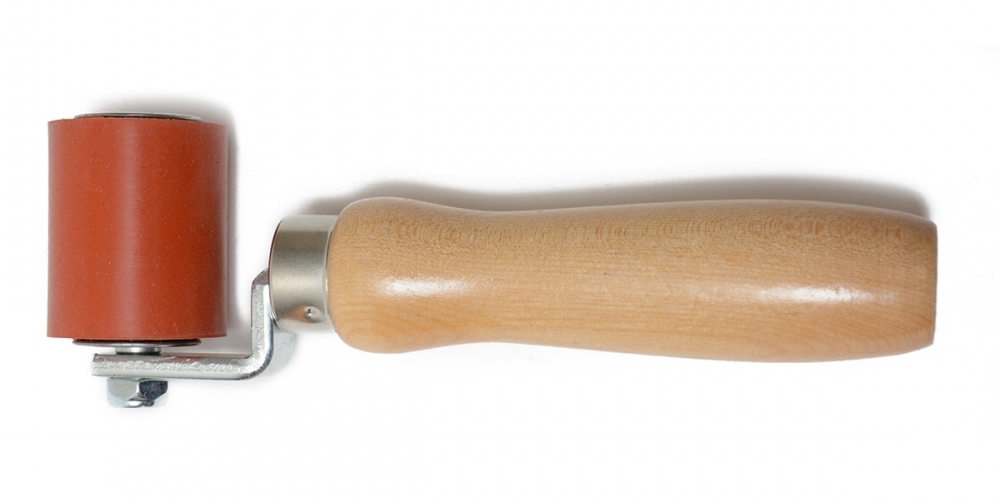

Silicone ROLLER For Use with Welder
Silicone Roller. Tough
silicone roller mounted on a sturdy handle for pressure rolling
tarps while being heat welded.
USES: Flattening out any surface
being glued or fit to complex shapes, such as carpeting to
automotive floors or vinyl onto complex shapes and when working with
heat such as hot air guns or lamps to soften the vinyl. For edging
tape and PVS. Also very useful for flattening out any surface being
glued or fit to complex shapes, such as carpeting to automotive
floors or vinyl onto complex shapes. It is also used for working
with heat such as hot air guns or lamps to soften the vinyl.
Recommended for use with the Part# 2840.
Part # 2845 Silicone Roller
